Banjo Valves

Disclaimer: Not all products listed are kept in stock; call or text our Parts Department for availability and pricing.
Please factor in shipping time when making your purchase. Special orders may be subject to a minimum quantity of 10.
Thank you!

BOLTED VALVES

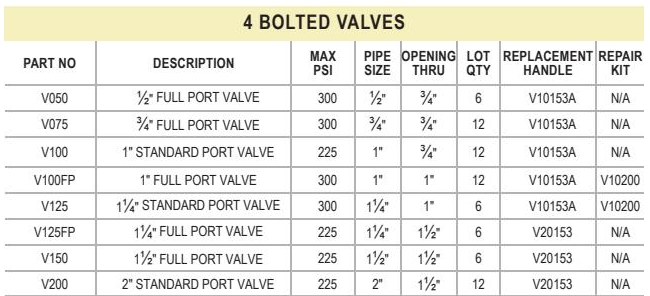

4 Bolted Valves

FEATURES:

  • "Ball is diamond turned after molding to make it spherically perfect

  • FKM (Viton type) seals.

  • Precision molded polypropylene is reinforced with fiberglass for additional strength.

  • PTFE self-lubricating stem bushings and seats cannot stick or bind.

  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.

  • Stainless steel bolts.

Banjo 4 Bolted Valve V125
Banjo 4 Bolted Valve V200
Banjo 4 Bolted Valve V100FP

V100FP

V125

V200

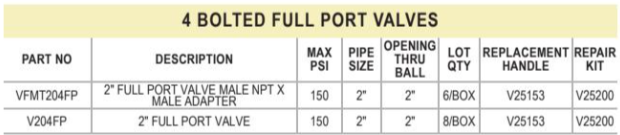

4 Bolted Full Port Valves

FEATURES:

  • "Ball is diamond turned after molding to make it spherically perfect

  • FKM (Viton type) seals.

  • Precision molded polypropylene is reinforced with fiberglass for additional strength.

  • PTFE self-lubricating stem bushings and seats cannot stick or bind.

  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.

  • Stainless steel bolts.

Banjo 4 Bolted Full Port Valve VFMT204FP
Banjo 4 Bolted Full Port Valve V204FP

VFMT204FP

V204FP

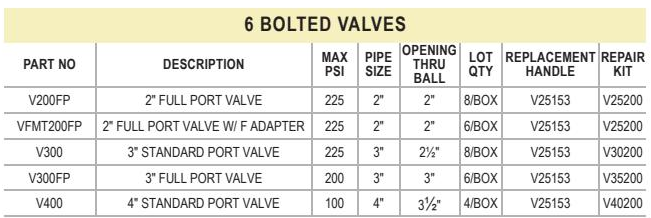

6 Bolted Valves

FEATURES:

  • "Ball is diamond turned after molding to make it spherically perfect

  • FKM (Viton type) seals.

  • Precision molded polypropylene is reinforced with fiberglass for additional strength.

  • PTFE self-lubricating stem bushings and seats cannot stick or bind.

  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.

  • Stainless steel bolts.

Banjo 6 Bolted Full Port Valve V400
Banjo 6 Bolted Full Port Valve V300

V300

Banjo 6 Bolted Full Port Valve V200FP

V200FP

V400

Banjo 6 Bolted Full Port Valve VFMT200FP

VFMT200FP

3 WAY VALVES

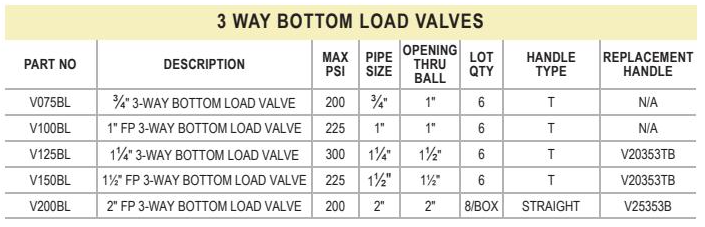

3 Way Bottom Load Valves

FEATURES:

  • Directional flow, right or left; valve can be turned off to stop flow

  • "Ball is diamond turned after molding to make it spherically perfect

  • FKM (Viton type) seals

  • Precision molded polypropylene is reinforced with fiberglass for additional strength

  • PTFE self-lubricating stem bushings and seats cannot stick or bind

  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle

  • Stainless steel bolts

Banjo 3 Way Bottom Load Valve V200BL

V200BL

Banjo 3 Way Bottom Load Valve V100BL

V100BL

Banjo 3 Way Bottom Load Valve V150BL

V150BL

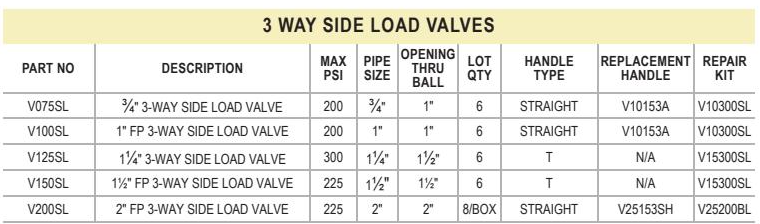

3 Way Side Load Valves

FEATURES:

  • Directional flow, right or left; valve cannot be turned off to stop flow

  • "Ball is diamond turned after molding to make it spherically perfect

  • FKM (Viton type) seals.

  • Precision molded polypropylene is reinforced with fiberglass for additional strength.

  • PTFE self-lubricating stem bushings and seats cannot stick or bind.

  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.

  • Stainless steel bolts.

Banjo 3 Way Side Load Valve V100SL

V100SL

Banjo 3 Way Side Load Valve V200SL

V200SL

UNION VALVES

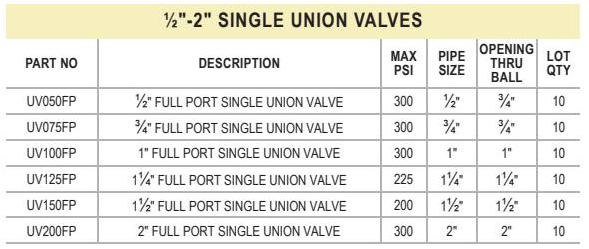

1/2" - 2" Single Union Valves

FEATURES:

  • Double O-rings in stem area for extra sealing protection

  • EPDM O-rings to handle most fertilizers and many chemicals

  • Interlocking body and end plate to allow easy thread connection when installing valves

  • Maximum operating pressure 100 PSI at 70°F

Banjo 1/2" - 2" Single Union Valve UV150FP

UV150FP

MICRO VALVES

1/4" - 1" Poly Micro Valves

FEATURES:

  • 90­° rotating handle.

  • Maximum operating pressure 300 P.S.I.

  • Precision molded polypropylene is reinforced with fiberglass for additional strength.

  • Standard FKM (Viton type) seats and O-rings.

Banjo 1/4" - 1" Poly Micro Valve LV038V

​LV038V

Banjo 1/4" - 1" Poly Micro Valve LVB038V

LVHB038V

NOZZLE VALVES

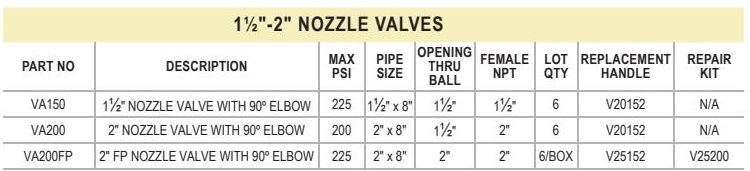

1-1/2" - 2" Nozzle Valves

FEATURES:

  • All stainless bolts

  • Angled end flange with 8" long polypropylene fill spout

  • Lightweight hose end valve for convenient transfer of liquids into drums, tanks, etc.

  • Maximum operating pressure 200 psi

Banjo 1-1/2" - 2" Nozzle Valve VA200

VA200

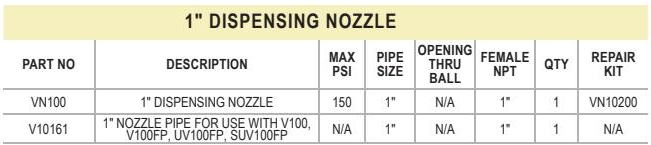

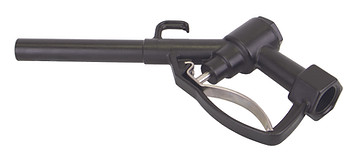

1" Dispensing Nozzles

FEATURES:

  • 304 stainless steel handle, spring and pin.

  • 150 P.S.I. Maximum

  • FKM rubber parts only

  • Glass reinforced polypropylene

  • Resists corrosion

Banjo 1" Dispensing Nozzle VN100

VN100

1" Nozzle Pipe for use with V100, V100FP, UV100FP

FEATURES:

  • 304 stainless steel handle, spring and pin.

  • 150 P.S.I. Maximum

  • FKM rubber parts only

  • Glass reinforced polypropylene

  • Resists corrosion

Banjo 1" Nozzle Pipe for use with V100, V100FP, UV100FP - Part Number V10161

V10161

STUBBY VALVES

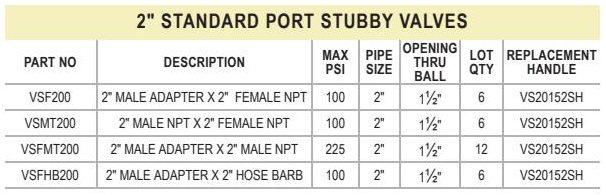

2" Standard Port Stubby Ball Valves

FEATURES:

  • All PTFE seals

  • Glass reinforced polypropylene

  • Lightweight

  • Maximum operating pressure 100 PSI at 70°F and 75 PSI at 150°F

  • Stainless steel bolts

  • Unique patented compact design

Banjo 2" Standard Port Stubby Ball Valve VSFHB200

VSFHB200

Banjo 2" Standard Port Stubby Ball Valve VSMT200

VSMT200

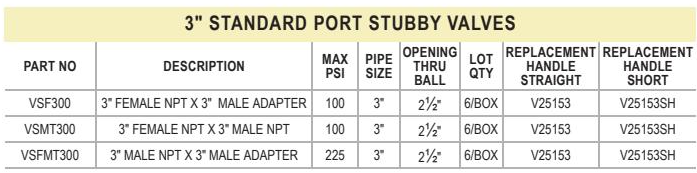

3" Standard Port Stubby Ball Valves

FEATURES:

  • All PTFE seals

  • Glass reinforced polypropylene

  • Lightweight

  • Maximum operating pressure 100 PSI at 70°F and 75 PSI at 150°F

  • Stainless steel bolts

  • Unique patented compact design

Banjo 3" Standard Port Stubby Ball Valve VSFMT300

VSF300

VSFMT300

Banjo 3" Standard Port Stubby Ball Valve VSF300

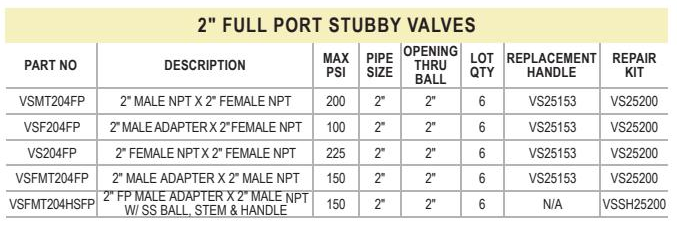

2" Full Port Stubby Ball Valves

FEATURES:

  • 100% PTFE ball seats

  • Glass reinforced polypropylene

  • Lightweight

  • Maximum operating pressure 100 PSI at 70°F and 75 PSI at 150°F

  • Stainless steel bolts

  • Unique patented compact design

Banjo 2" Full Port Stubby Ball Valve VSFMT204FP

VSFMT204FP

Banjo 2" Full Port Stubby Ball Valve VSMT204FP

VSMT204FP

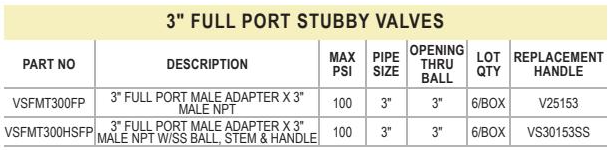

3" Full Port Stubby Ball Valves

FEATURES:

  • 100% PTFE ball seats

  • Glass reinforced polypropylene

  • Lightweight

  • Maximum operating pressure 100 PSI at 70°F and 75 PSI at 150°F

  • Stainless steel bolts

  • Unique patented compact design

Banjo 3" Full Port Stubby Ball Valve VSFMT300HSFP

VSFMT300HSFP

MANIFOLD FLANGE VALVES

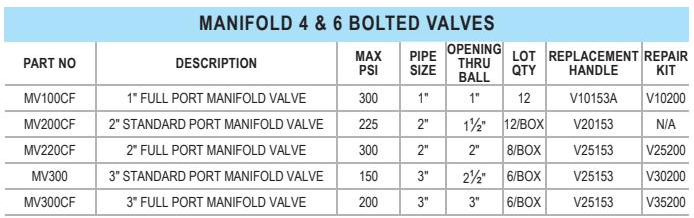

Manifold 4 & 6 Bolted Valves

FEATURES:

  • "Ball is diamond turned

  • FKM (Viton type) seals

  • Precision molded in polypropylene; reinforced with fiberglass for additional strength

  • PTFE self-lubricating stem bushings and seats cannot stick or bind

  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.

Banjo Manifold 4 & 6 Bolted Valve MV200CF

MV200CF

Banjo Manifold 4 & 6 Bolted Valve MV300CF

MV300CF

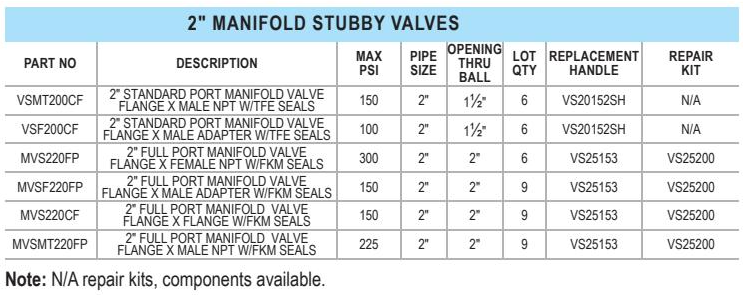

Manifold Flange 2" Stubby Valves

FEATURES:

  • "Ball is diamond turned after molding to make it spherically perfect, which provides precise contact between ball and seats.

  • FKM seals.

  • Precision molded polypropylene is reinforced with fiberglass for additional strength.

  • PTFE self-lubricating stem bushings and seats cannot stick or bind.

  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.

  • Stainless steel bolts.

Banjo Manifold Flange 2" Stubby Valve MVSF220FP

MVSF220FP

Banjo Manifold Flange 2" Stubby Valve MVS220FP

MVS220FP

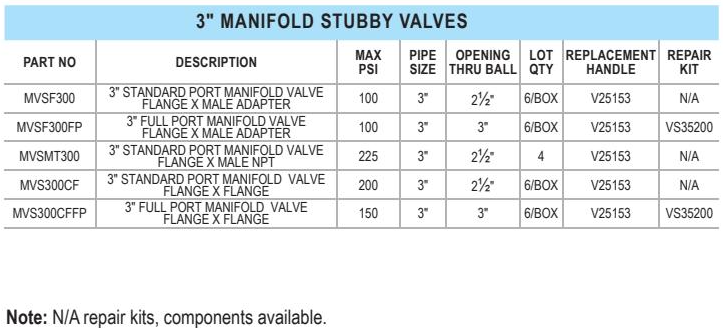

Manifold Flange 3" Stubby Valves

FEATURES:

  • "Ball is diamond turned after molding to make it spherically perfect, which provides precise contact between ball and seats.

  • FKM seals.

  • Precision molded polypropylene is reinforced with fiberglass for additional strength.

  • PTFE self-lubricating stem bushings and seats cannot stick or bind.

  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.

  • Stainless steel bolts.

Banjo Manifold Flange 3" Stubby Valve MVSF300

MVSF300

Banjo Manifold Flange 3" Stubby Valve MVSMT300

MVSMT300

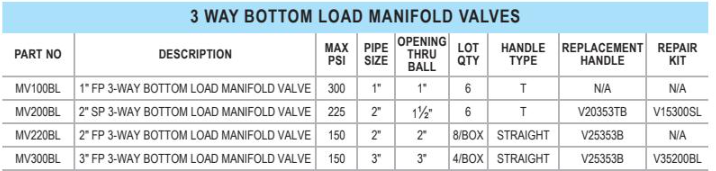

3 Way Bottom Load Manifold Valves

FEATURES:

  • "Ball is diamond turned after molding to make it spherically perfect, which provides precise contact between ball and seats.

  • FKM seals.

  • Precision molded polypropylene is reinforced with fiberglass for additional strength.

  • PTFE self-lubricating stem bushings and seats cannot stick or bind.

  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.

  • Stainless steel bolts.

  • Directional flow, right or left; valve can be turned off to stop flow

Banjo 3 Way Bottom Load Manifold Valve MV100BL

MV100BL

Banjo 3 Way Bottom Load Manifold Valve MV220BL

MV220BL

Banjo 3 Way Bottom Load Manifold Valve MV200BL

MV200BL

Banjo 3 Way Bottom Load Manifold Valve MV300BL

MV300BL

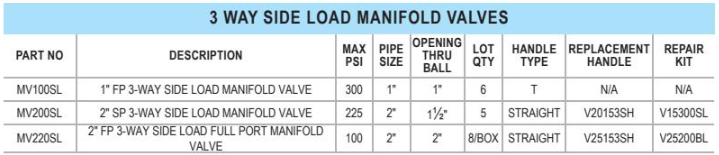

3 Way Side Load Manifold Valves

FEATURES:

  • "Ball is diamond turned after molding to make it spherically perfect, which provides precise contact between ball and seats.

  • FKM seals.

  • Precision molded polypropylene is reinforced with fiberglass for additional strength.

  • PTFE self-lubricating stem bushings and seats cannot stick or bind.

  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.

  • Stainless steel bolts.

  • Directional flow, right or left; valve cannot be turned off to stop flow

Banjo 3 Way Side Load Manifold Valve MV100SL

MV100SL

Banjo 3 Way Side Load Manifold Valve MV200SL

MV200SL

Banjo 3 Way Side Load Manifold Valve MV220SL

MV220L

ELECTRIC VALVES

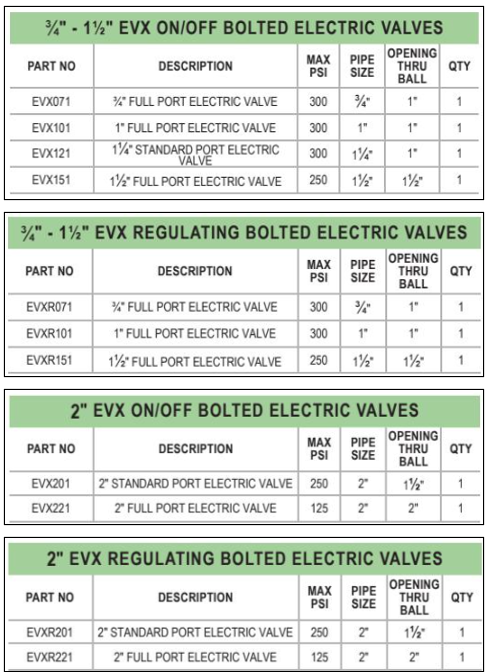

1" - 2" Full Port & Standard Port Electric Valves

FEATURES:

  • 12-volt DC operated

  • 24-volt available

  • Open/closed indicator

  • ON/OFF has 1 sec response

  • Open / Close verification available

  • IP68 waterproof

  • -20 to 150F (-29 to 65C) operating

  • -67 to 221F (-55 to 105C) storage

  • Actuator rated to 500,000 cycles

  • Valve rated to 50,000 cycles leak-free 100G’s shock rating

Banjo 1" - 2" Full Port & Standard Port Electric Valve EVX151

EVX151

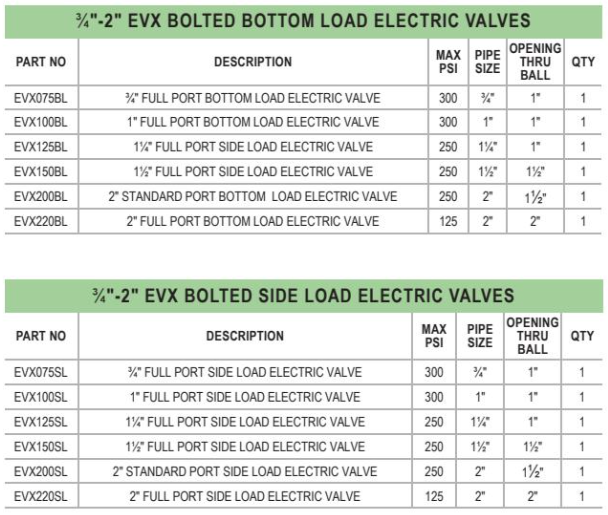

1" - 2" Side Load & Bottom Load Electric Valves

FEATURES:

  • Valve flow cannot be turned off

  • 316 stainless steel ball & stem

  • Stainless steel hardware

  • Fiberglass reinforced polypropylene

  • Glass reinforced PTFE seats

  • FKM or EPDM O-rings

  • 12-volt DC operated

  • 150PSI maximum pressure @ 70°F

  • Easily repairable

  • Open/closed indicator.

Banjo 1" - 2" Side Load & Bottom Load Electric Valve EVX100SL

EVX100SL

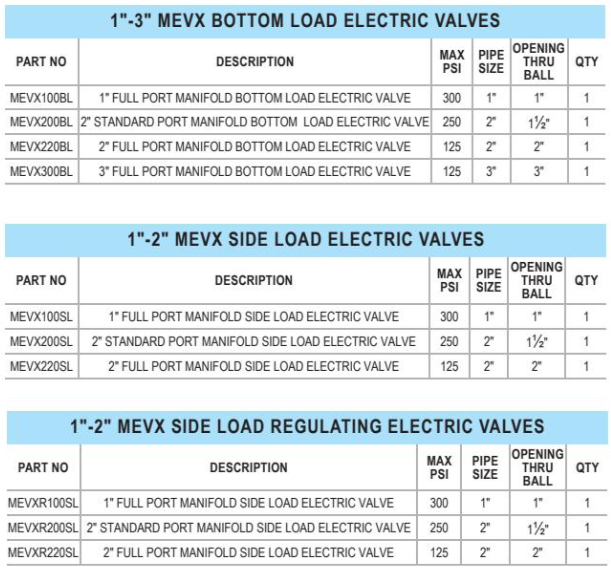

1" - 2" Manifold Flange Electric Valves

FEATURES:

  • Valve flow cannot be turned off

  • 316 stainless steel ball & stem

  • Stainless steel hardware

  • Fiberglass reinforced polypropylene

  • Glass reinforced PTFE seats

  • FKM or EPDM O-rings

  • 12-volt DC operated

  • 150PSI maximum pressure @ 70°F

  • Easily repairable

  • Open/closed indicator.

Banjo 1" - 2" Manifold Flange Electric Valve MEVX200

MEVX200
