DirectoValve®

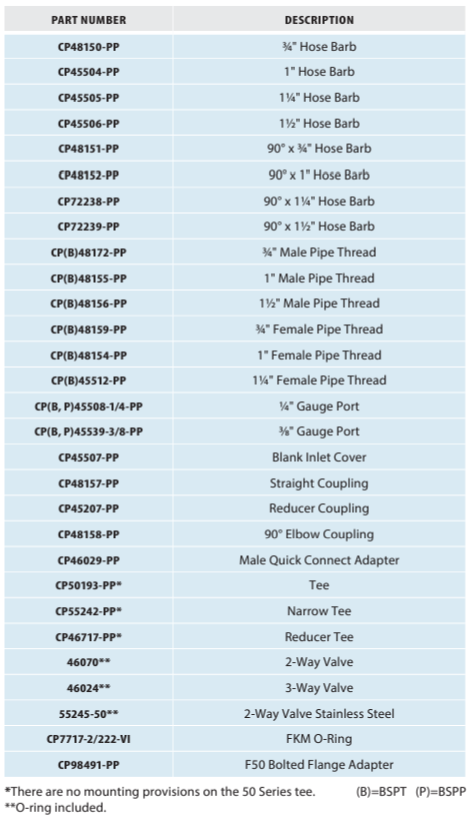

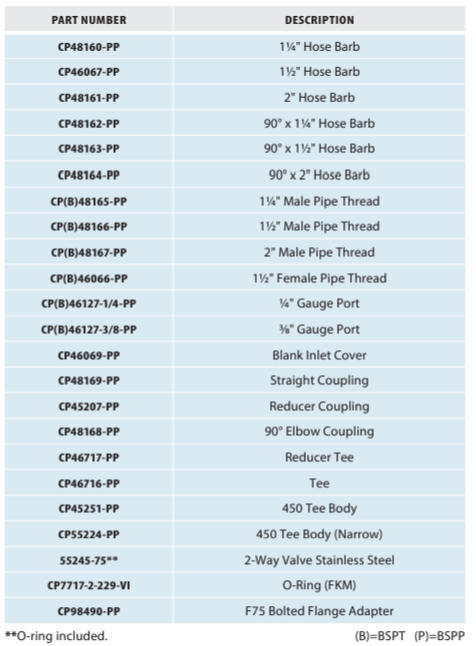

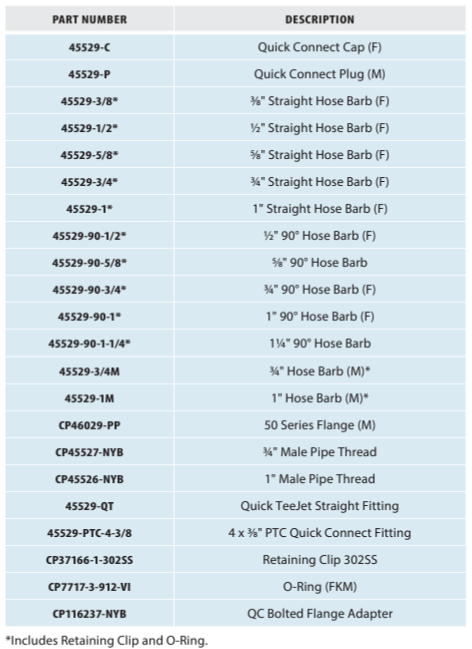

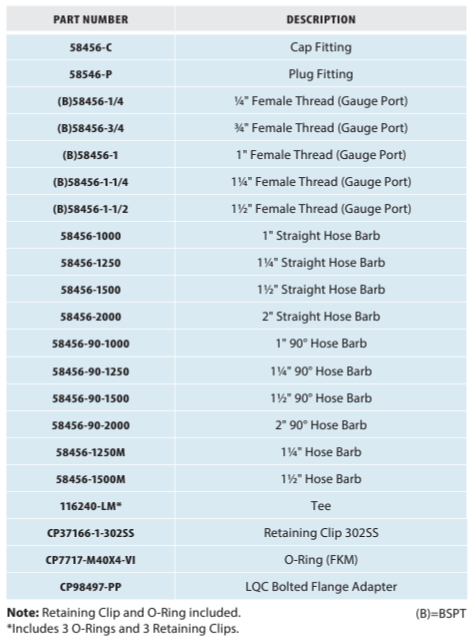

430/530 Manifold Accessories
DirectoValve®
2-Way Electrically Operated Solenoid Valves
AA144P
FEATURES:
-
Operate on 12 VDC system
-
Flow Rate: 10 GPM at 5 PSI pressure drop, 14 GPM at 10 PSI pressure drop
-
2.5 AMP current draw
-
Polypropylene body for chemical resistance
-
Fabric reinforced FKM diaphragms and seat washers
-
No stroke adjustment required.
-
Corrosion resistant, 430SS solenoid grade armature and armature stop
-
Encapsulated coil and magnetic circuit
DirectoValve®
3-Way Electrically Operated Solenoid Valves

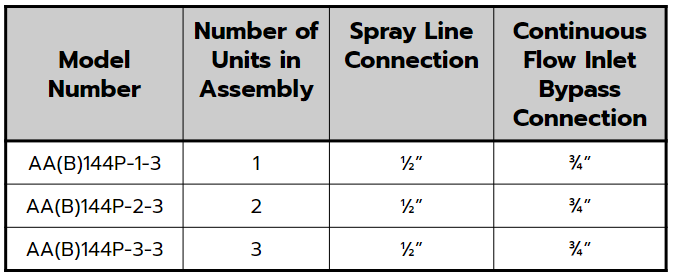

AA144P-1-3
The 144P-1-3 three-way solenoid operated DirectoValve control valve was specifically designed to provide bypass control in spraying applications. When used with part number 23520-PP throttling valve or a 4916 metering orifice plate in the bypass line, it can provide for a constant pressure spray system.
FEATURES:
-
For pressure to 65 PSI
-
Flow Rate: 8 GPM at 5 PSI pressure drop, 11 GPM at 10 PSI pressure drop
-
Fabric-reinforced FKM diaphragms
-
Nylon encapsulated 12 VDC coil with 1/4" Quick Connect terminals
-
Power requirement 2.5 AMP
-
Glass-filled polypropylene (black) valve body
-
Internal metal parts are stainless steel
-
No stroke adjustment needed
-
Corrosion resistant, 430SS solenoid grade armature and armature stop

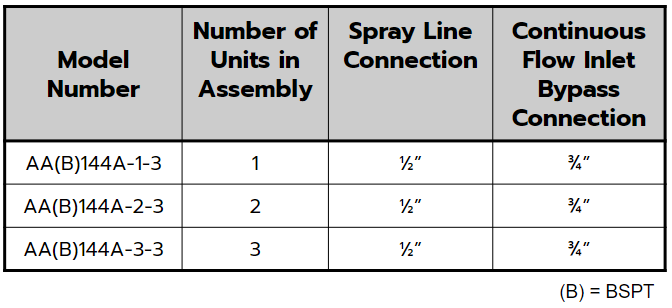

AA144A-1-3
The three-way solenoid operated DirectoValve control valve bypasses boom flow to maintain constant spraying pressure when one or more boom sections are shut off. To maintain pressure with a 23520 Throttling Valve, Outlet 2 must be throttled to match the total capacity of the nozzles on that boom section.
FEATURES:
-
For pressure to 65 PSI
-
Flow Rate: 8 GPM at 5 PSI pressure drop, 11 GPM at 10 PSI pressure drop
-
2.5 AMP current draw
-
Encapsulated 12 VDC coil can be easily changed without removing valve from line
-
Polypropylene body for chemical resistance
-
Stainless steel internal metal parts
-
Chemical resistant EPDM diaphragms and seat washers
DirectoValve®

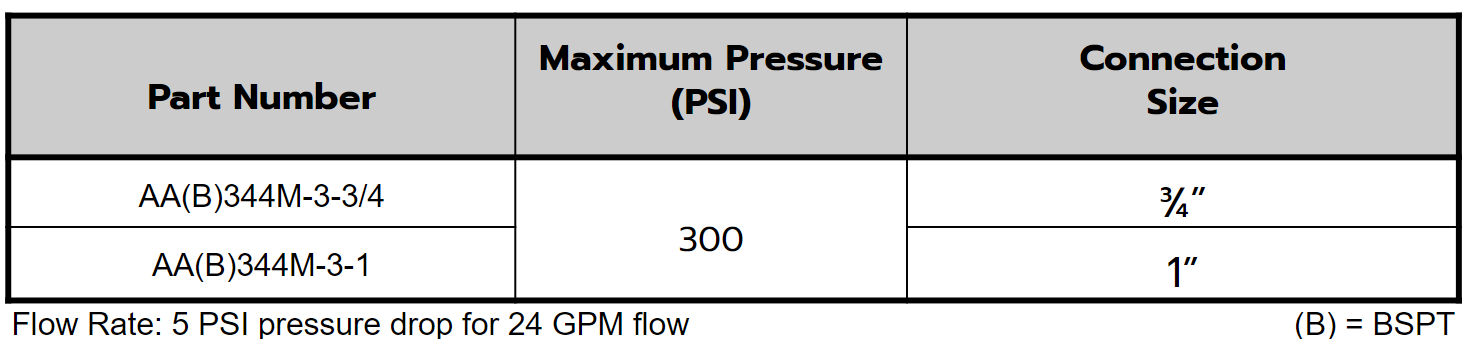

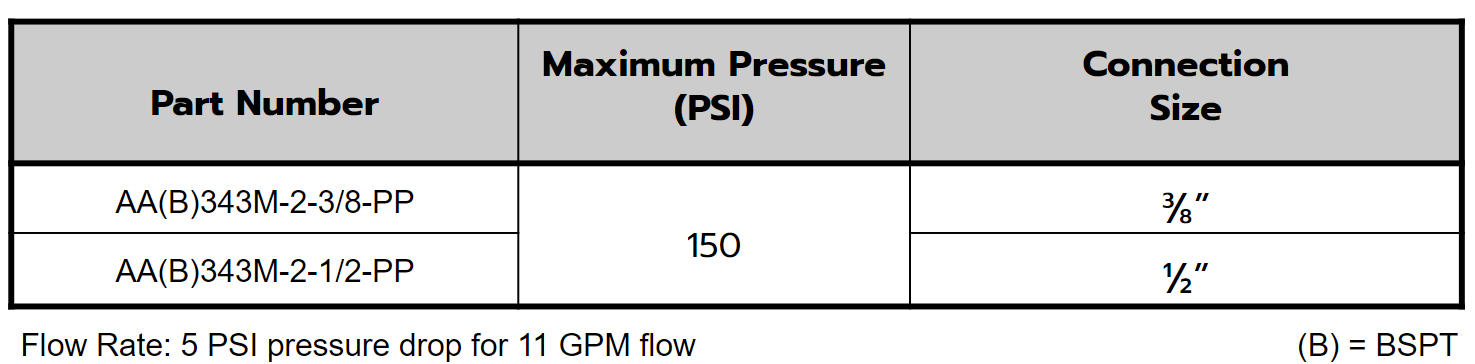

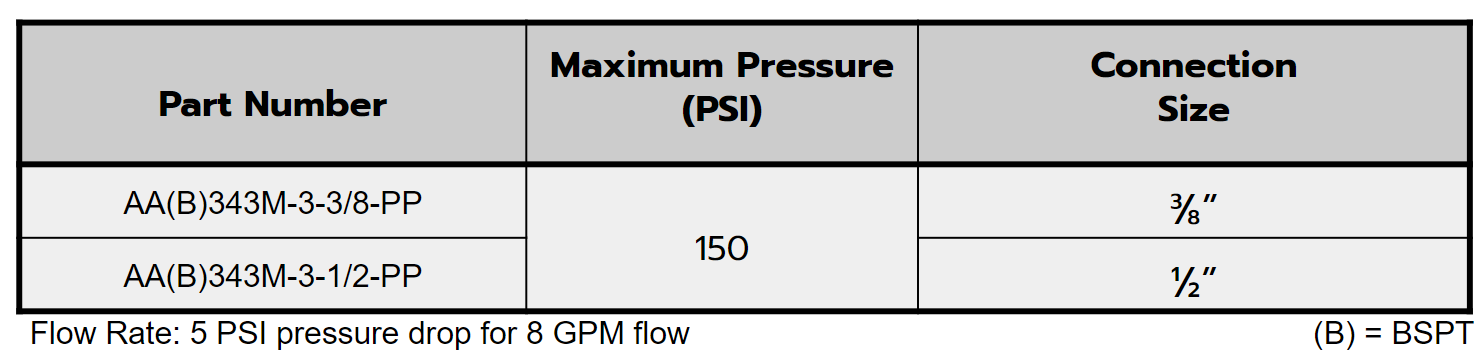

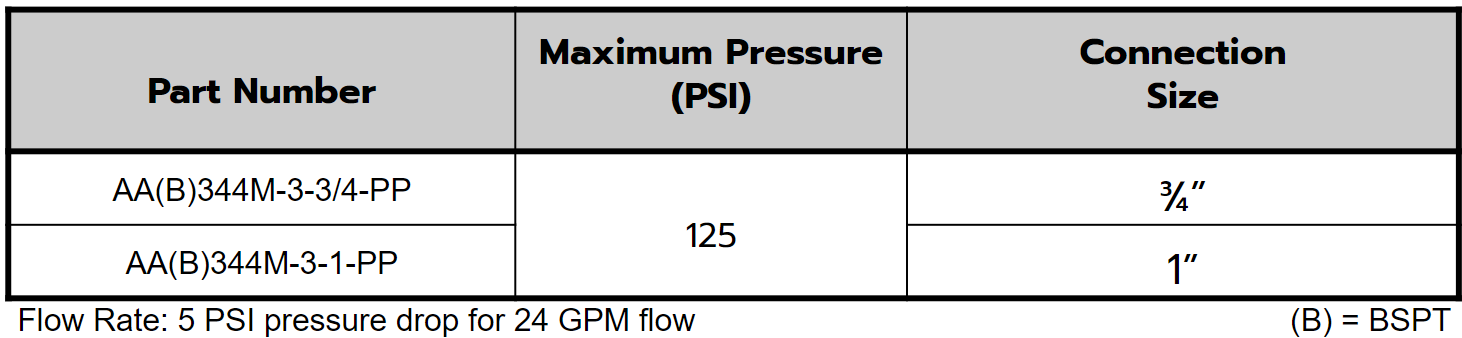

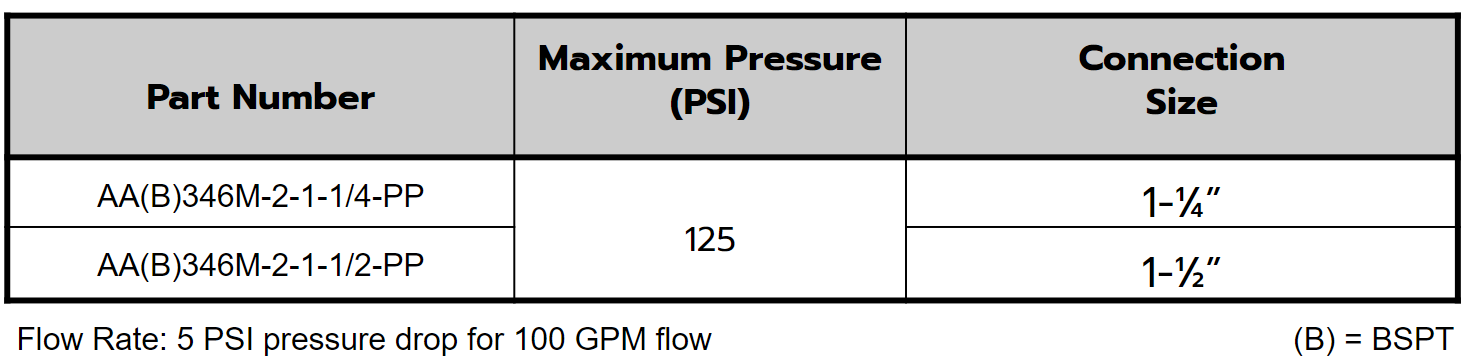

340 Series 3-Way Manual Shutoff Ball Valves
DirectoValve®

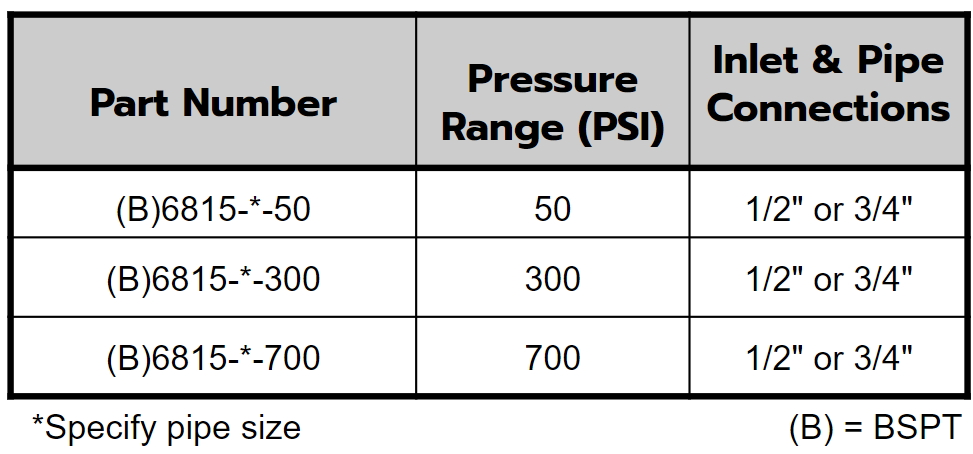

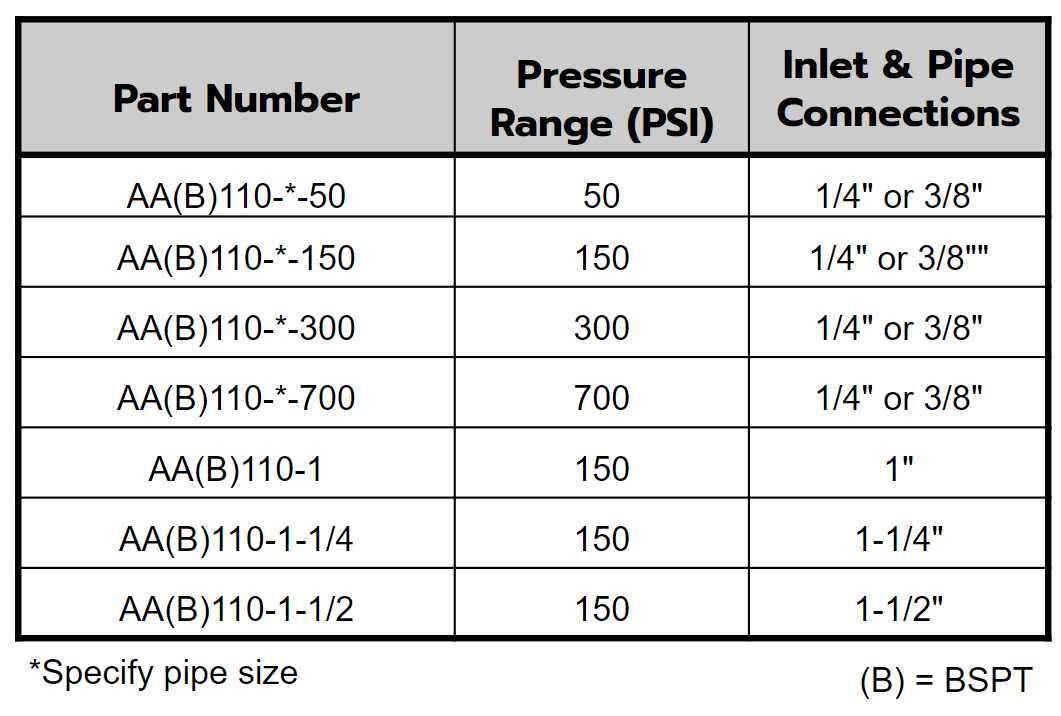

Piston-Type Pressure Relief/Regulating Valves
DirectoValve®
Diaphragm-Type Pressure Relief/Regulating Valves
8460
FEATURES:
-
Flow rate to 56 GPM for 1/2" and 70 GPM for 3/4"
-
8460-*-50 uses stainless steel springs while 8460-*-300 uses steel springs; responsive to the pressure range of each valve
-
Extra-large valve passages to handle full flow from supply line
-
Positive locknut to hold adjustment screw firmly in place; not affected by jarring and vibration
-
Inlet body material: nylon
-
Outlet body material: aluminum
DirectoValve®
Manual Control Valves
AA6B
FEATURES:
-
Molded of corrosion resistant materials; all wetted parts are polypropylene, stainless steel and polyethylene
-
Maximum pressure of 150 PSI
-
Flow Rate: 12 GPM at 5 PSI pressure drop, 17 GPM at 10 PSI pressure drop
-
Molded-in mounting flange and 1/4" NPT gauge port
-
Valves can be ganged together using hex nipple for multiple boom control
-
Easily repaired without removing valve from spray line
TeeValve®
Control Valves

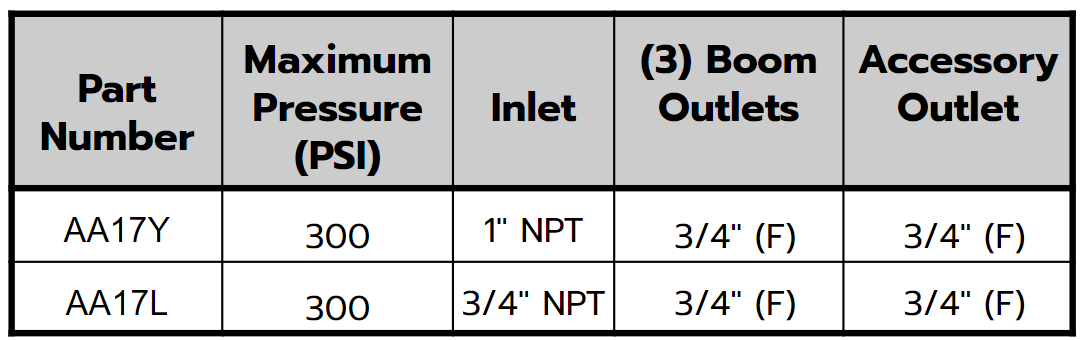

AA17
FEATURES:
For selective control of three-section boom sprayers at pressures up to 300 PSI.
-
Use to open any of three boom section lines in any desired combination
-
Raise lever to open, lower lever to close the valve without changing the indexed position
-
Aluminum construction with stainless steel and plastic internal parts for maximum corrosion resistance
TeeJet®
Throttling Valves
For regulating flow in systems equipped with centrifugal pumps where sensitive regulation is required or to control flow in jet agitator return lines. Locknut holds pressure setting firmly in place.
23520
FEATURES:
-
Inlet & Pipe Connections: 1/2" and 3/4" NPT or BSPT
-
Material: Polypropylene
-
Maximum pressure: 150 PSI
12690
FEATURES:
-
Inlet & Pipe Connections: 1/2" or 3/4" NPT
-
Material: Nylon, Acetal, Aluminum, Steel, Stainless Steel
-
Maximum pressure: 125 PSI
23520
FEATURES:
-
Inlet & Pipe Connections: 1", 1-1/4" or 1-1/2" NPT
-
Material: Brass, Aluminum, Ductile Iron
-
Maximum pressure: 150 PSI
